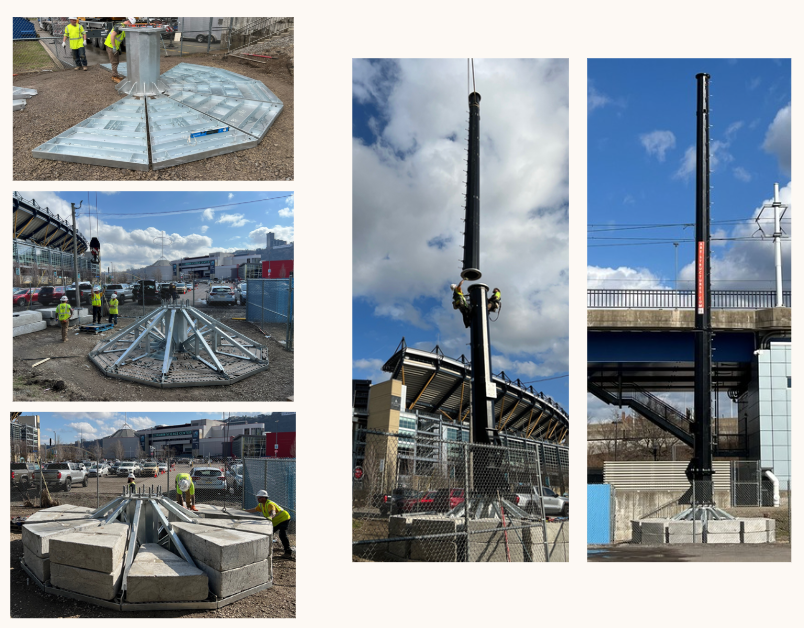

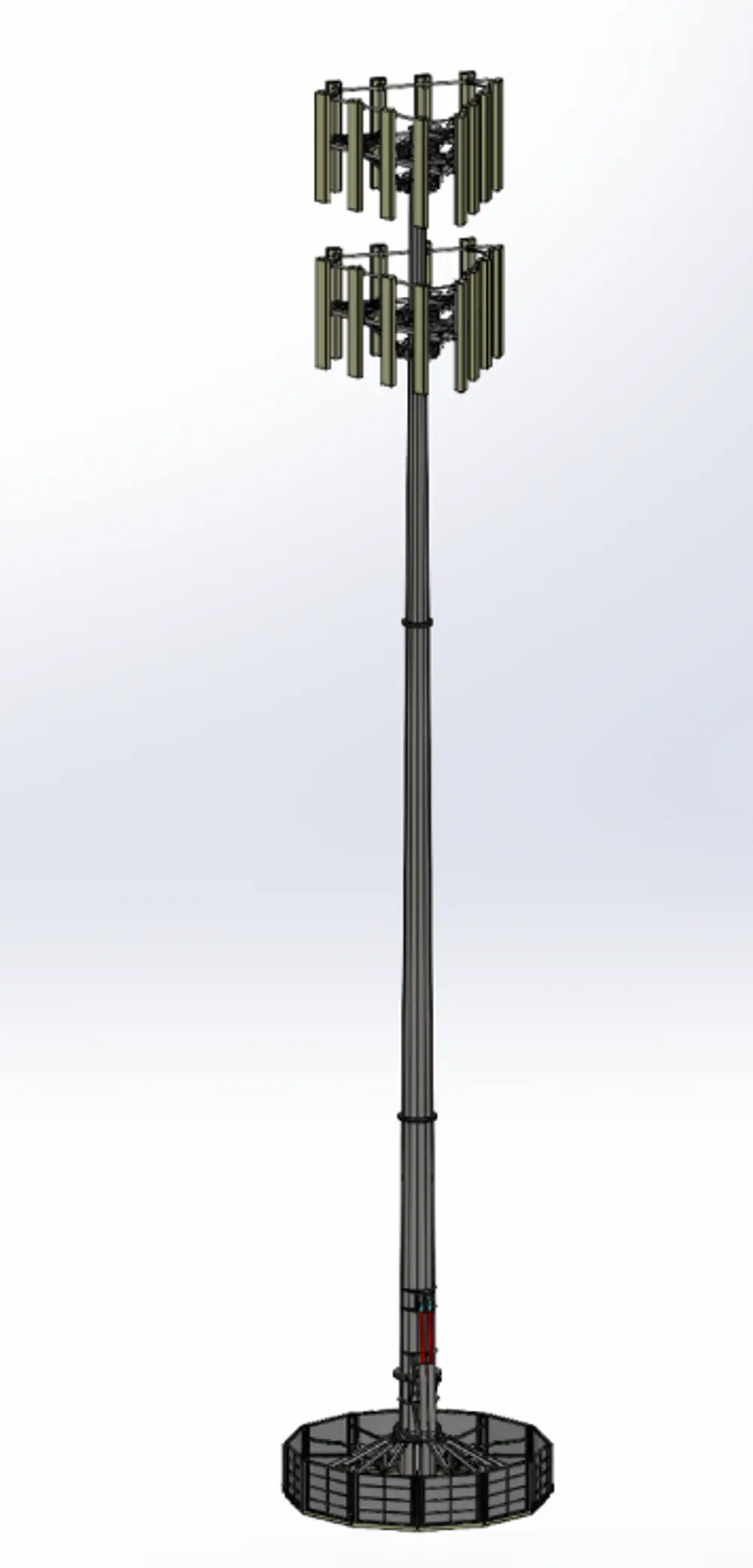

While not modular like the 1100/1300, the 1400 has a number of design features that make it ideal for temporary installations, with installations taking less than 1 day under normal conditions.
With a slightly larger base than the 1300, and more robust trays and truss arms, the 1400 can support a maximum base moment of 794 kip-ft, 30% more capacity than the 1300 and nearly double what other ballasted options can support.

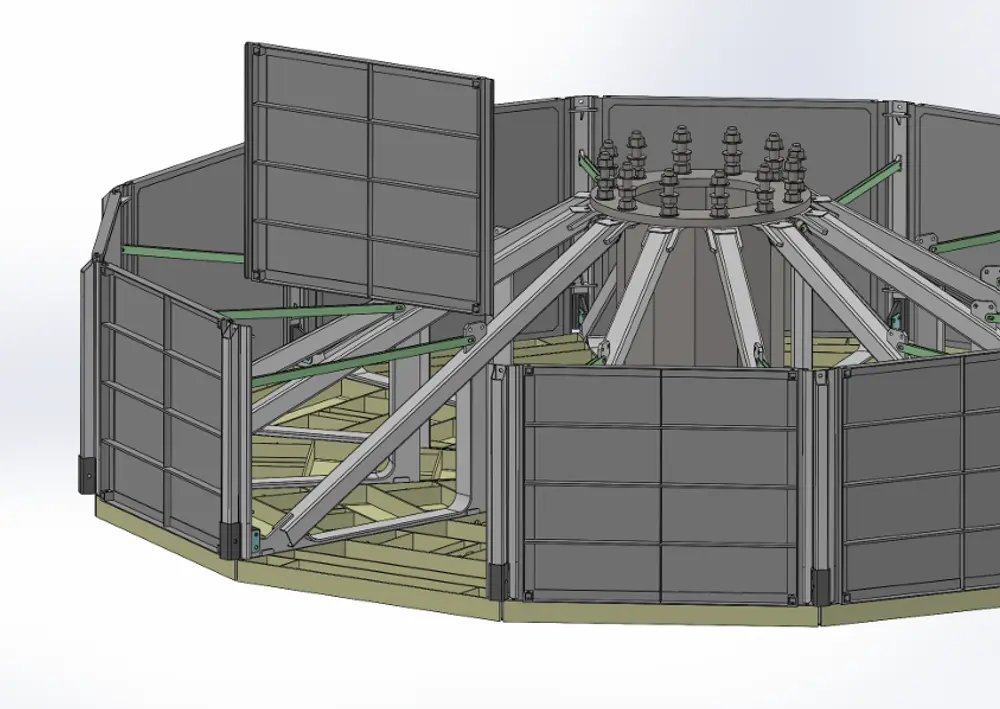

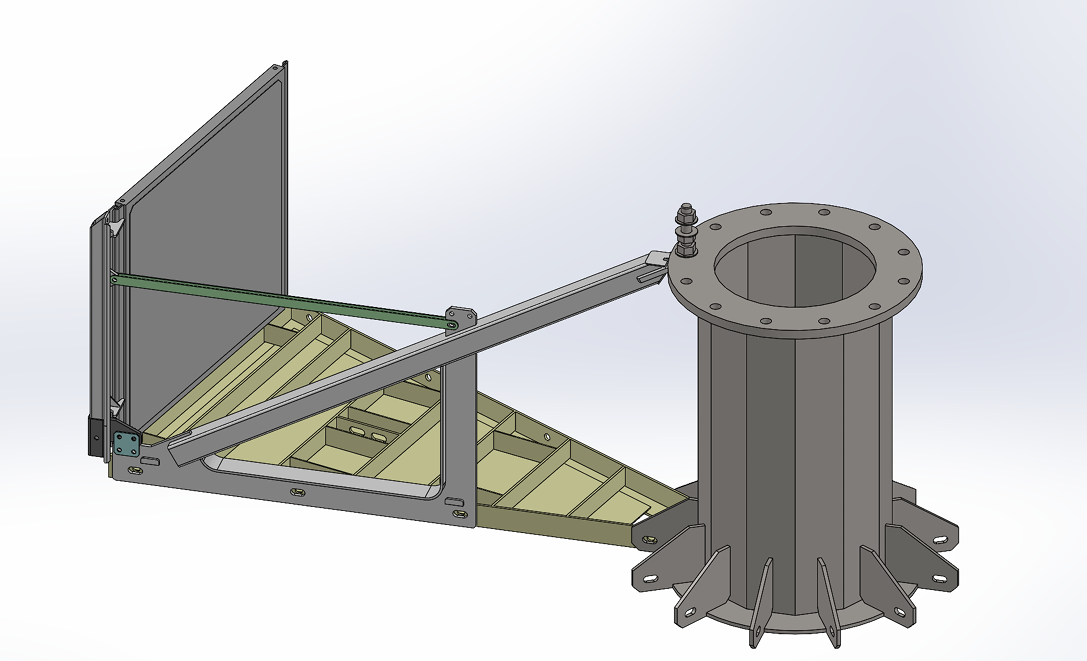

The foundation is shorter, with side walls the lower into slotted channels – requiring no bolts or pins, allowing for fast installation and easy removal of our side-walls regardless of the ballast fill used.
Key Features:
- Certified as a permanent structure to TIA
- Hydraulic System: 30T Hydraulic Raising Kit
- Temporary or permanent
- Rapid deployment - Installs in less than 1 day
- Ballast Options Include: Local dirt, sand, gravel/rock, precast concrete blocks, and bulk bags

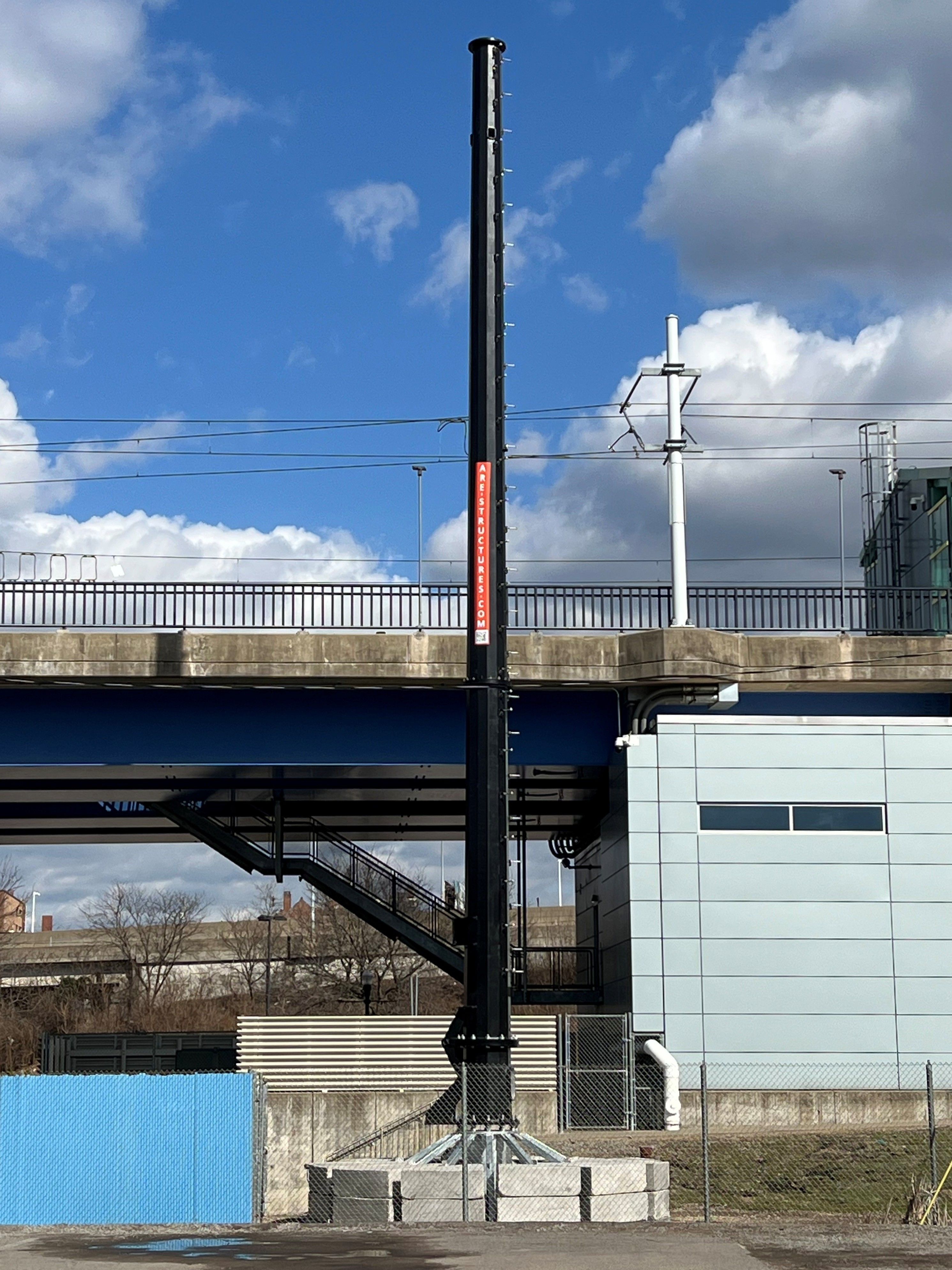

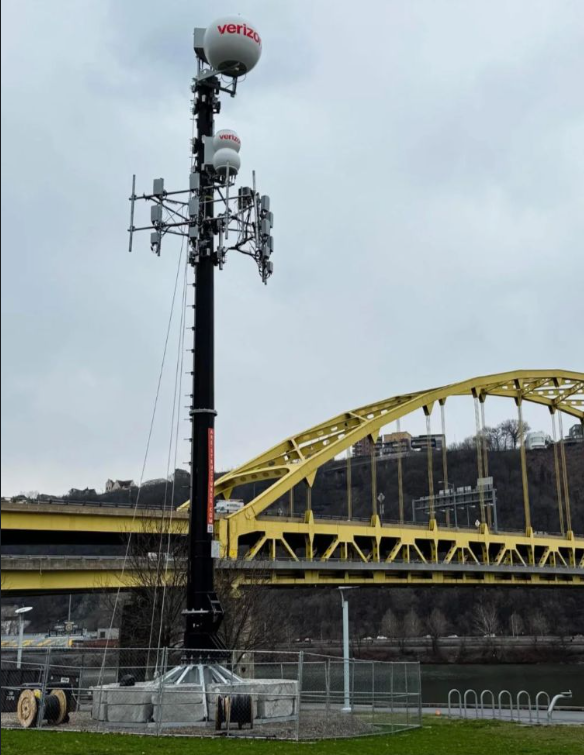

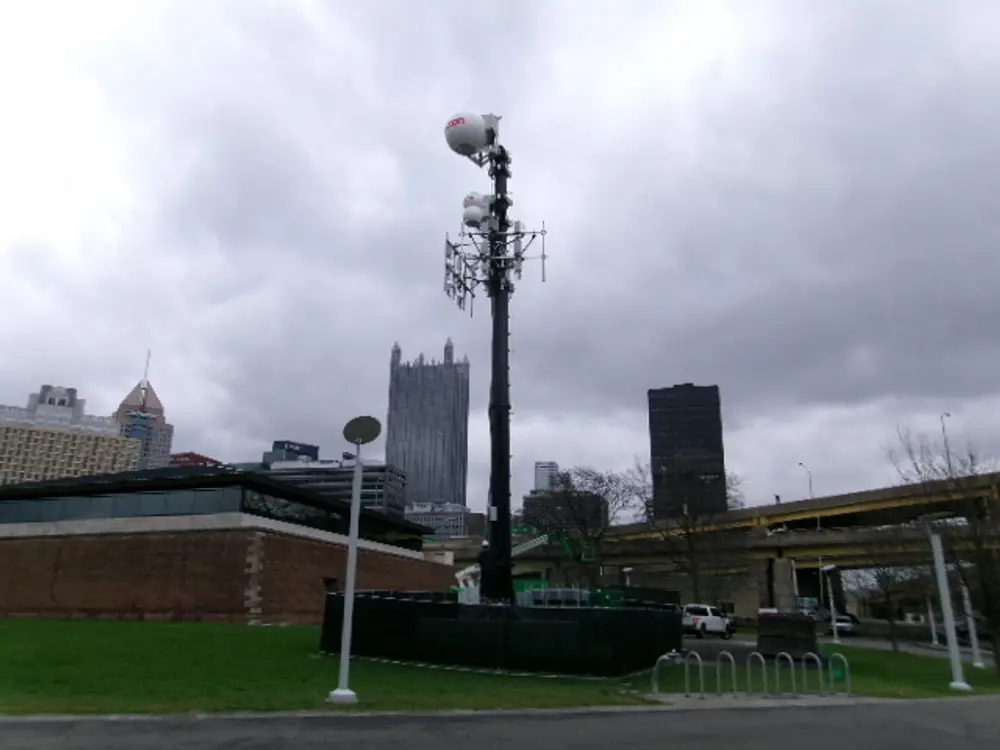

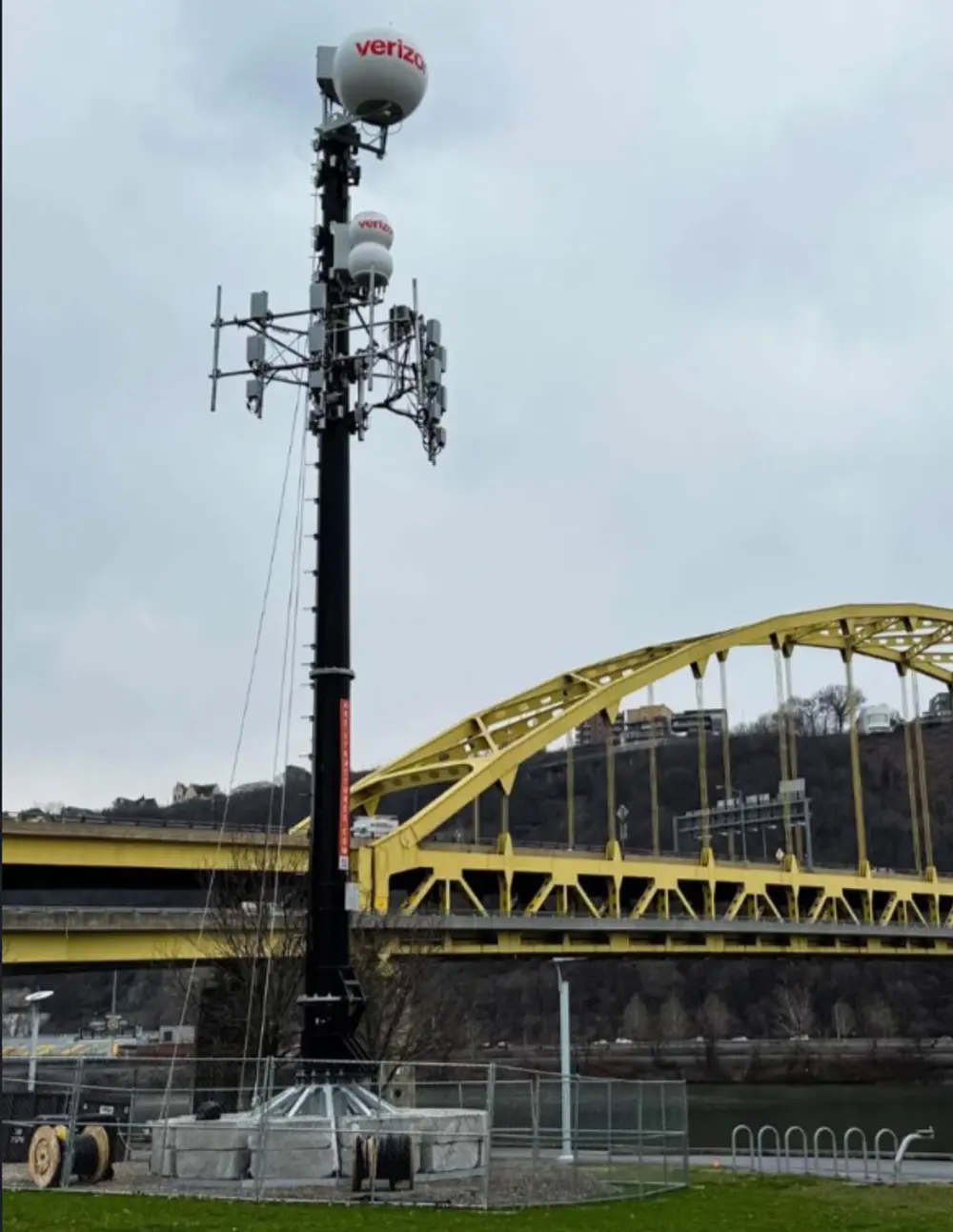

Perfect for telecom projects needing a compact footprint with fast installation and proven hydraulic pole raising capabilities.
