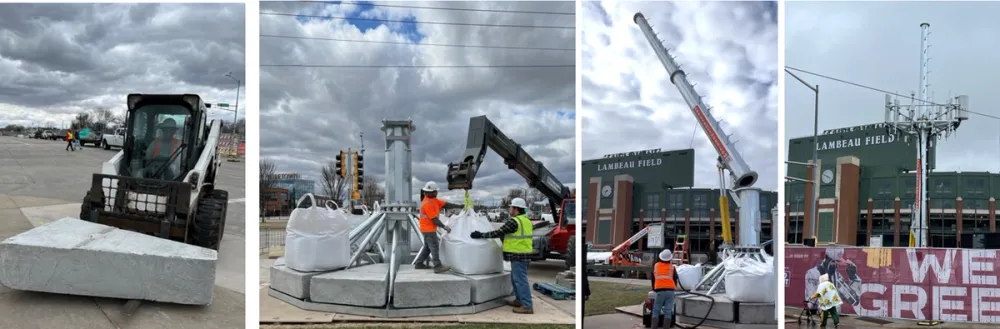

The AFS 1300 foundation delivers exceptional load capacity with a compact 17' diameter footprint, supporting base moment loads up to 500,000 foot-lbs. This high-capacity ballasted foundation system requires a 4-person crew and proper tools, including ballast loading with skid-steer.

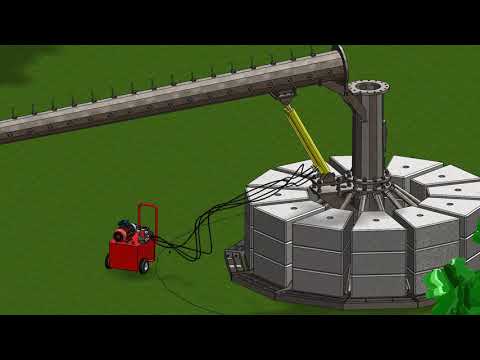

The central kingpost is set with pie-like trays laid around it. Truss arms are then assembled and torqued to make the foundation rigid. With ballast loaded, this foundation will weigh 100,000 lbs with side walls extending 5 feet high.
Key Features:
- Certified to TIA
- Hydraulic System: 30T Hydraulic Raising Kit
- Temporary or permanent
- Rapid deployment

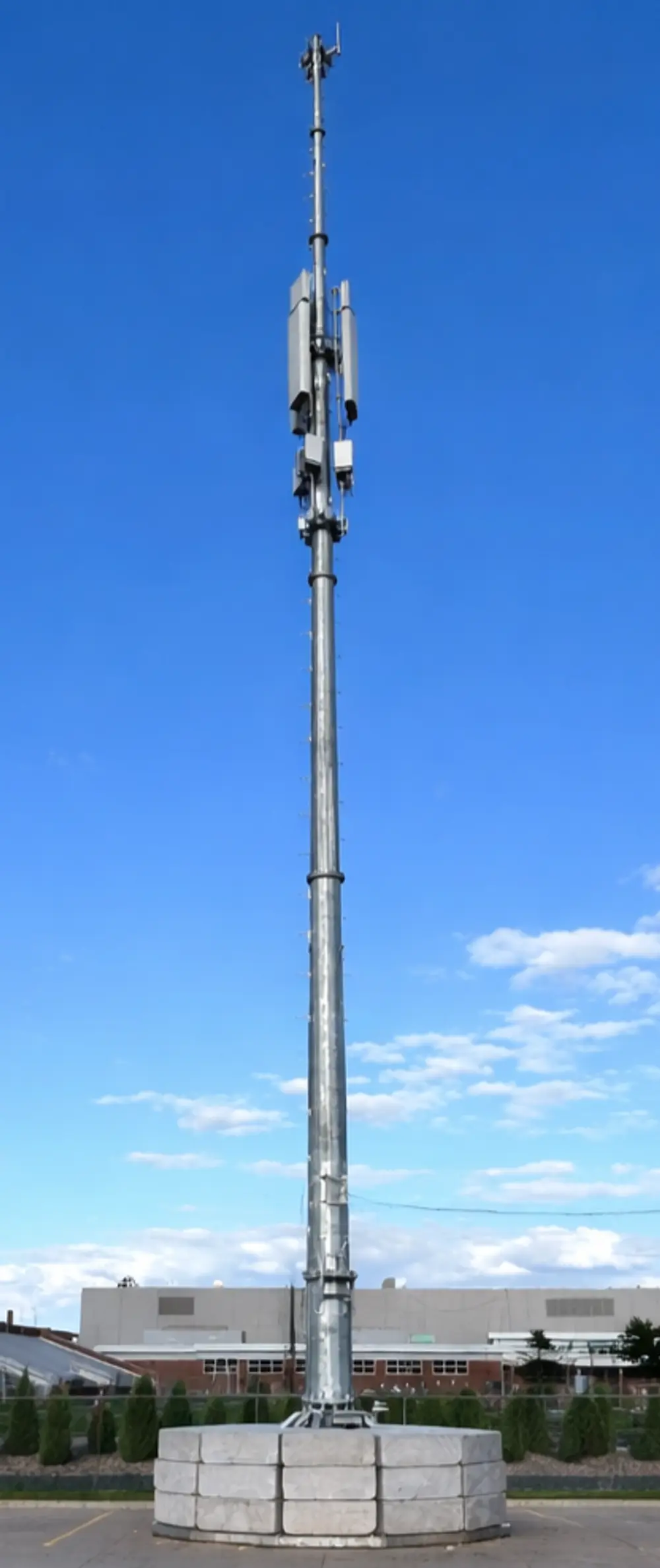

Perfect for communication projects needing a compact footprint with fast installation and proven hydraulic pole raising capabilities.
