ARE Telecom's AFS 200 Pole Enhances Argonne's Research
Argonne National Labs was in need of a 30 foot pole to support electrical components to record data for energy research purposes.
AFS 200
The Need
ARE Structures was hired on by Argonne National Labs to install our AFS 200 30’ Tilt-Up Pole to support recording climate date (SAGE). Argonne is involved in research related to developing advanced nuclear energy systems, renewable energy technologies, energy storage, and energy efficiency. The AFS 200 is being used to support various electrical components to record data which is transmitted by Starlink- a satellite internet constellation operated by SpaceX.
Overview
The AFS 200 system allowed Argonne to have a permanent or temporary foundation and 30’ self-raising pole that is assembled by 2 people, with only hand tools, within hours, that can support their technical requirements and be hauled to remote sites in a conventional pick-up truck. With the help of ARE’s patented system, Argonne is able to conduct their research at any remote location.
Project Benchmarks
- Installs in hours
- No motorized equipment required
- Pole hydraulic rams are powered by 12v truck battery
- Ballast blocks purchased locally
- Raising system removed and used on other ARE pole systems
Project Resources
- Pick-up truck and trailer
- Hand tools
- Compactor
- ARE 12v pole raising system
- Concrete blocks
Challenges
- Pole top deflection for Starlink dish
- Limited budget
- Remote Montana location
- Tight deadline due to severe weather

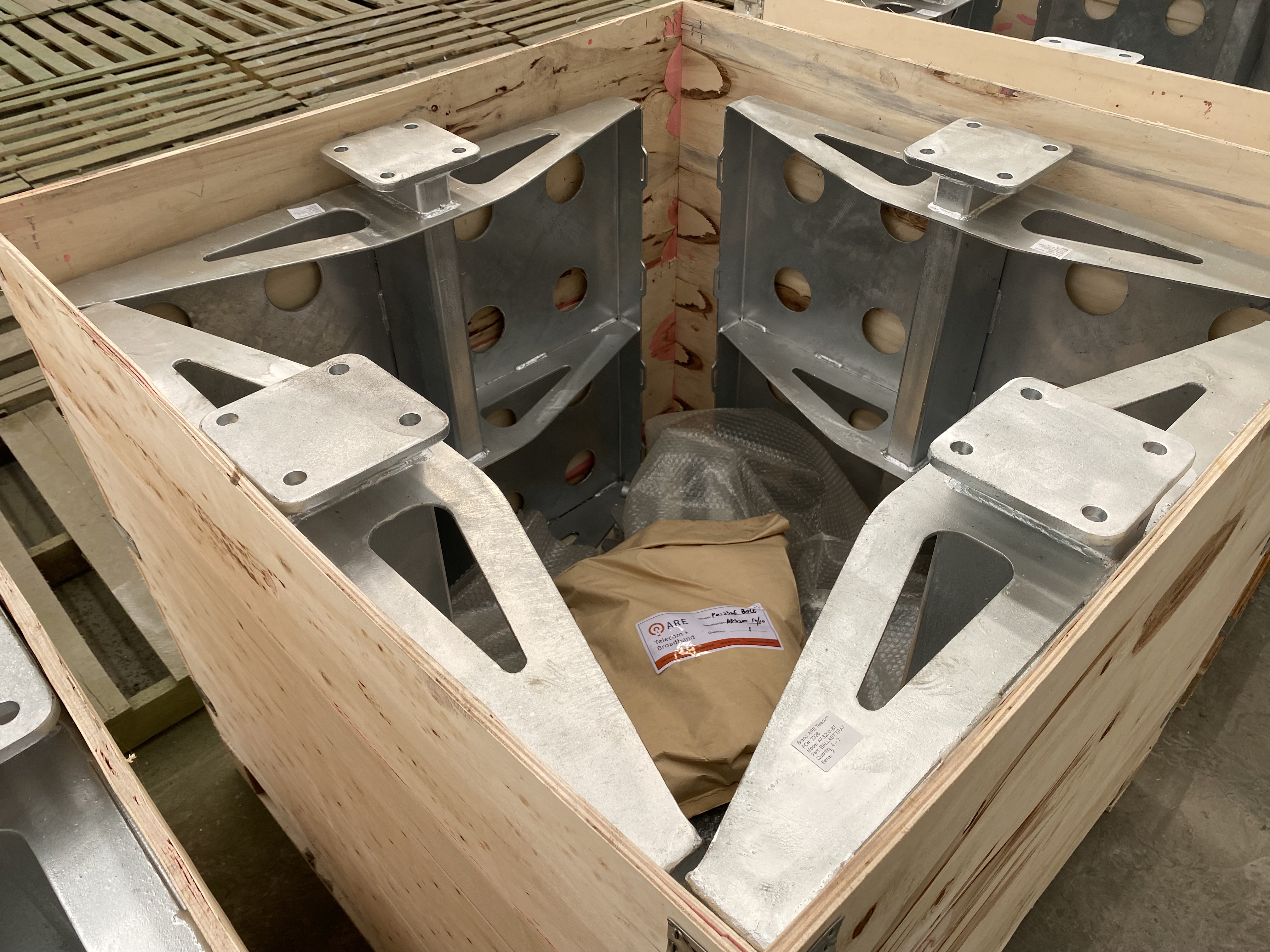

AFS 200 foundation in shipping crate

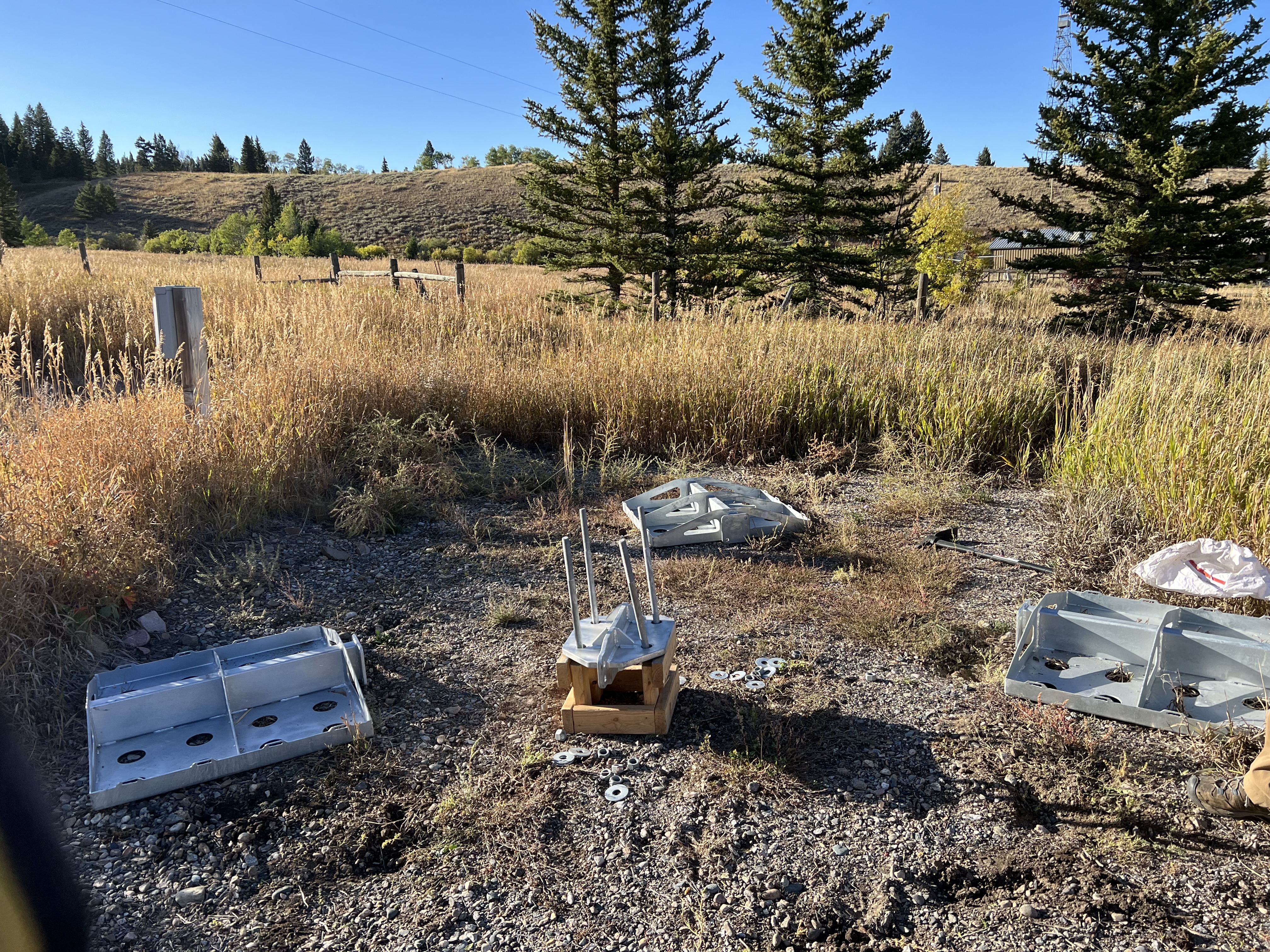

Level area for ballast trays

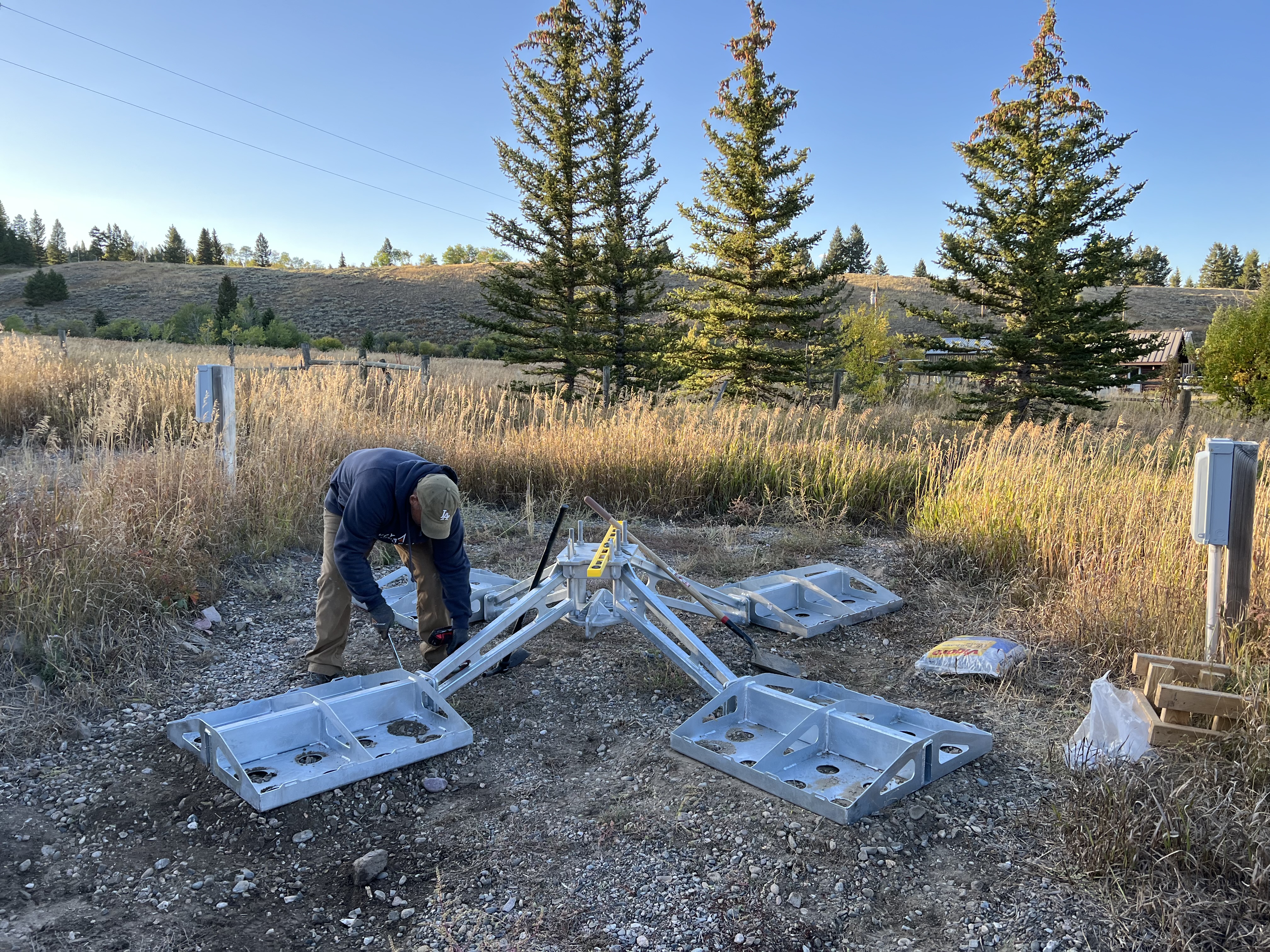

Assemble center hub, legs and attach ballast trays
Pin bottom of ram to bottom plate, pin pole base to foundation, then pin top of ram to pole section
Assemble pole, use criss-cross bolt tightening with 3 torquing passes

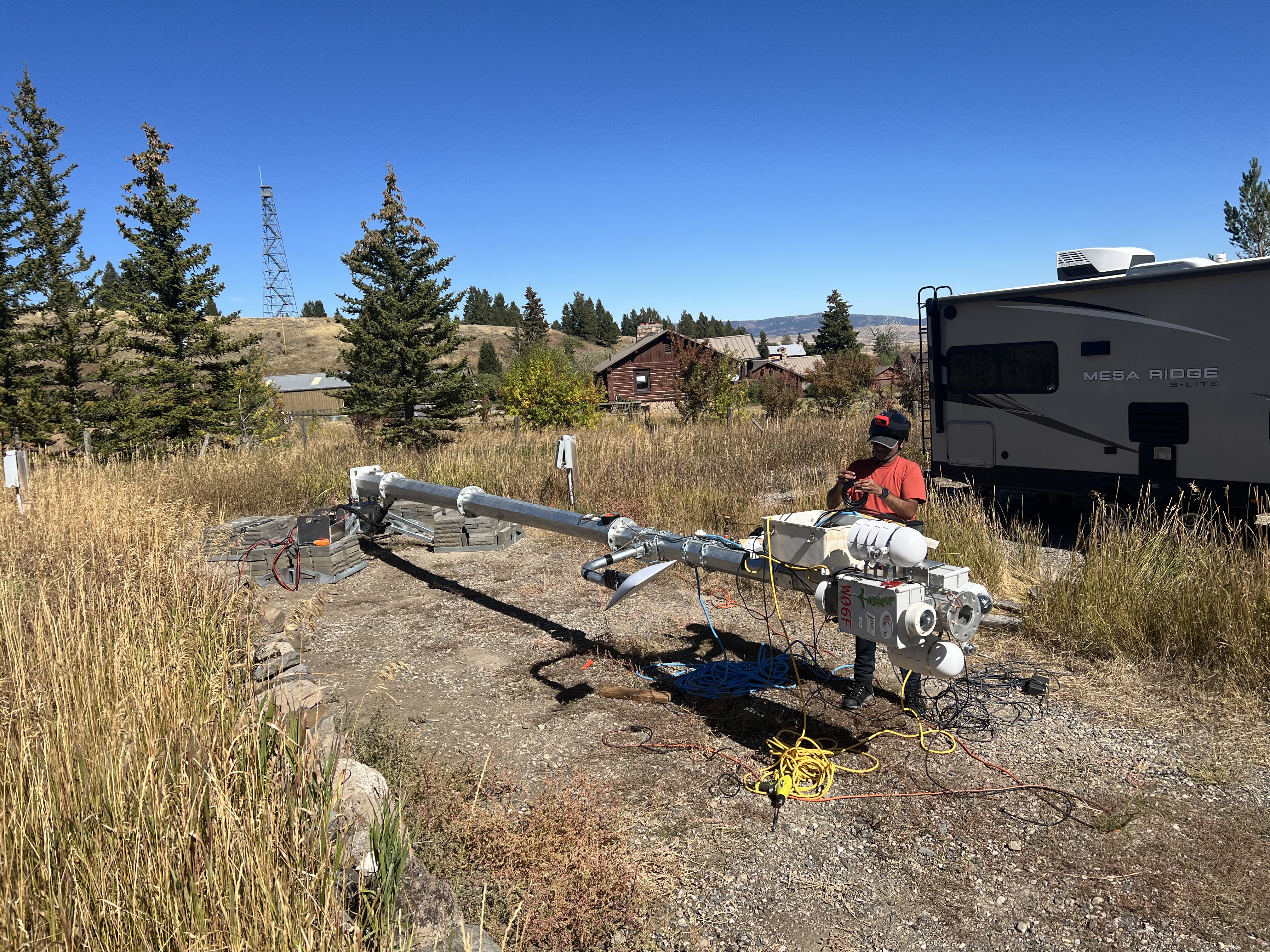

Connect clamps to 12v vehicle battery and raise pole
